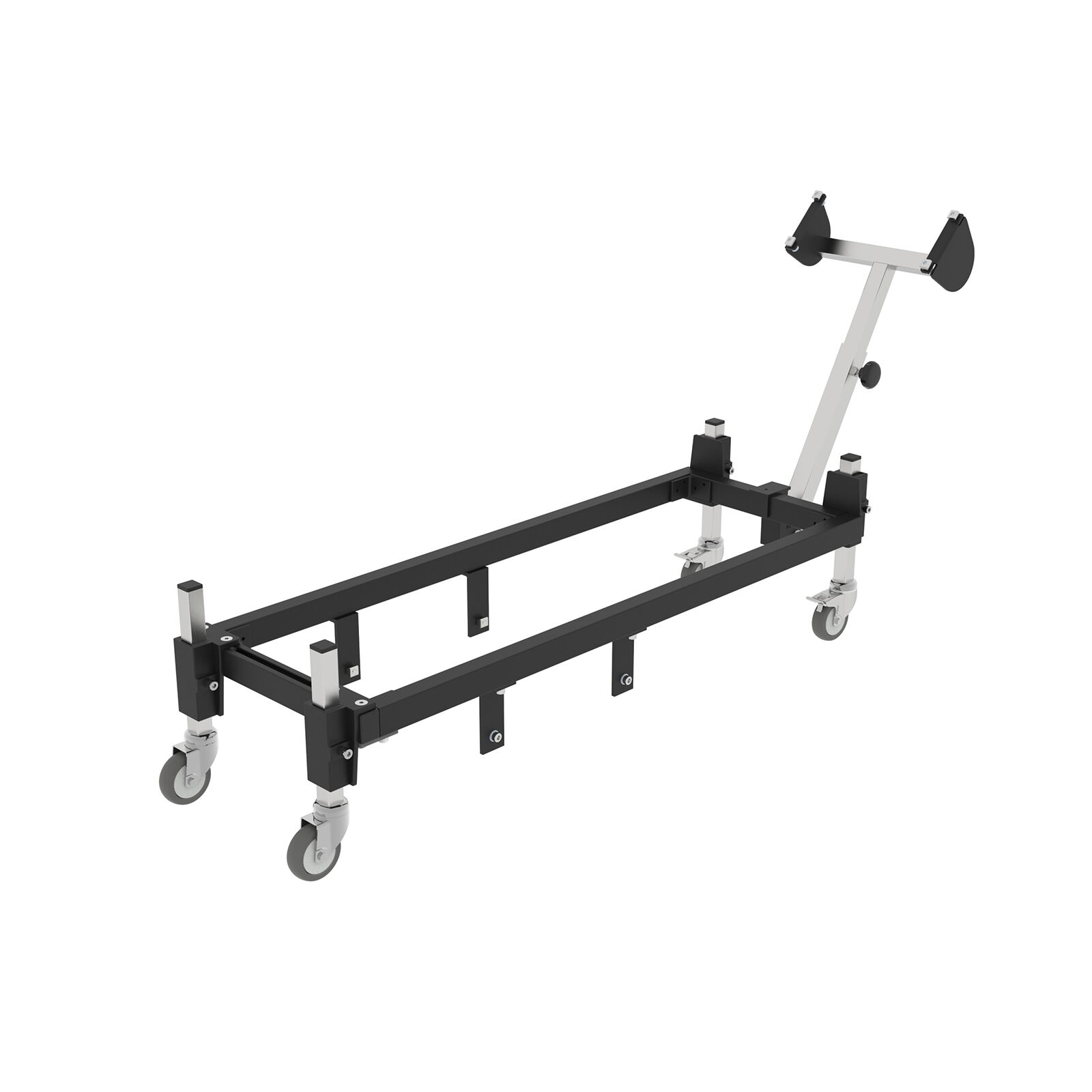

Base frame type TB 110

Base frame with an integrated gas spring for angle conveyor belts type NL or ZL up to a width of approx. 400 mm, whose conveying angle can be conveniently adjusted. The lower flat belt section is suspended in a frame, allowing for minimal feed heights. Typical application: Angle conveyor belts with minimal feed height, e.g., machine discharge conveyors. Height adjustment: Stepless, but only within a small conveying height range. Incline: 0° up to 60°
Overhang: laterally protruding underframe parts

Suitable for Multi-Tech: N, Z
